The coiltec advantage
At COILTEC, our core business has always been custom, quick-turn, high quality form coils. With our roots planted firmly in the world of electric motors, we fully appreciate the challenges of your business. Your customers expect the impossible delivered yesterday. We have the craftsmen, equipment, inventory, capacity and logistics best-suited to make the impossible happen. COILTEC is built around meeting the needs of regional electric motor repair shops just like yours.
We Have The Specialized Equipment To Do The Job…And The Experience To Make Sure It’s Done Right.
NEW IN 2024 AT COILTEC

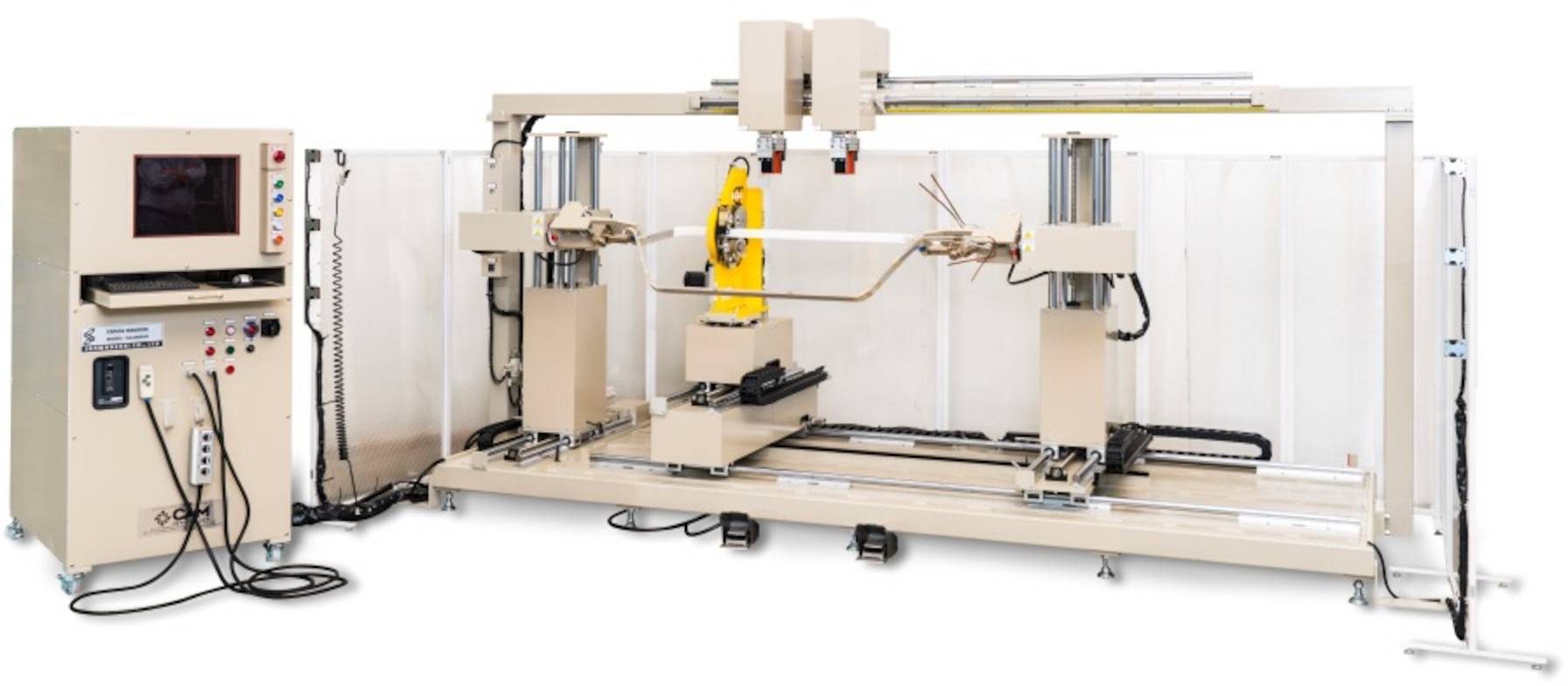

SA2000R AUTOMATIC COIL TAPING MACHINE
Consistent overlap every time
Tighter, higher-quality insulation wraps. These machines eliminate the inconsistency and inaccuracy that result when manually taping coils.
Controlled Tape Tension and Overlap
Results in consistent wraps and higher insulation quality. On some jobs these technologically advanced machines can produce a tape wrap so perfect that extra tape insulation layers can be added to coils.
Recipe-Driven Computer Controlled Taping
With the ability to store set-up data for many different coil sizes and types, the SA Model Taping machines can be quickly set up. Leg taping lengths can be programmed for each layer of insulation and the overlap can be changed at different parts of the coil.
Need help with your motor rewind?
Is it too much work? No time to do it?

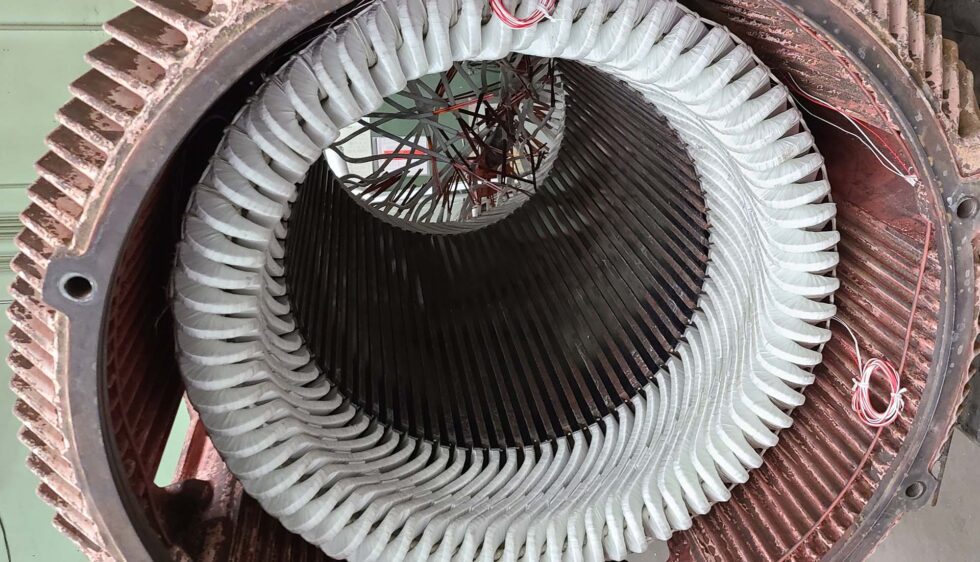

Coiltec is now offering stator rewinding services. Don’t let time constraints or workload overwhelm you. Let us handle your rewind needs with precision and expertise. Coiltec has partnered with trusted Texas-based shops, pooling decades of rewinding experience to deliver top-quality service. Our team ensures your stator rewinding needs are met with unmatched skill and attention to detail.
- Fast turnaround times
- Competitive Pricing
- Unparalleled Customer Satisfaction
Products We Offer
With our experienced craftsmen, you’ll get the most efficient and reliable service.

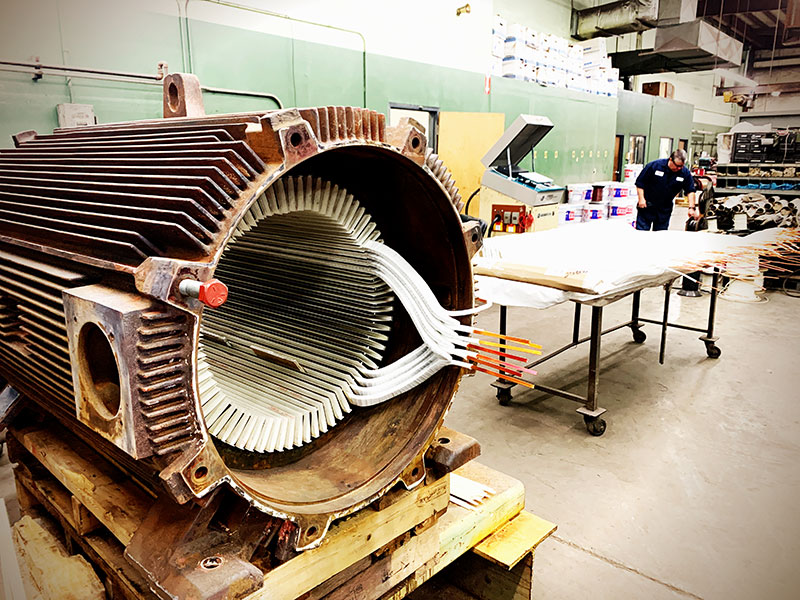

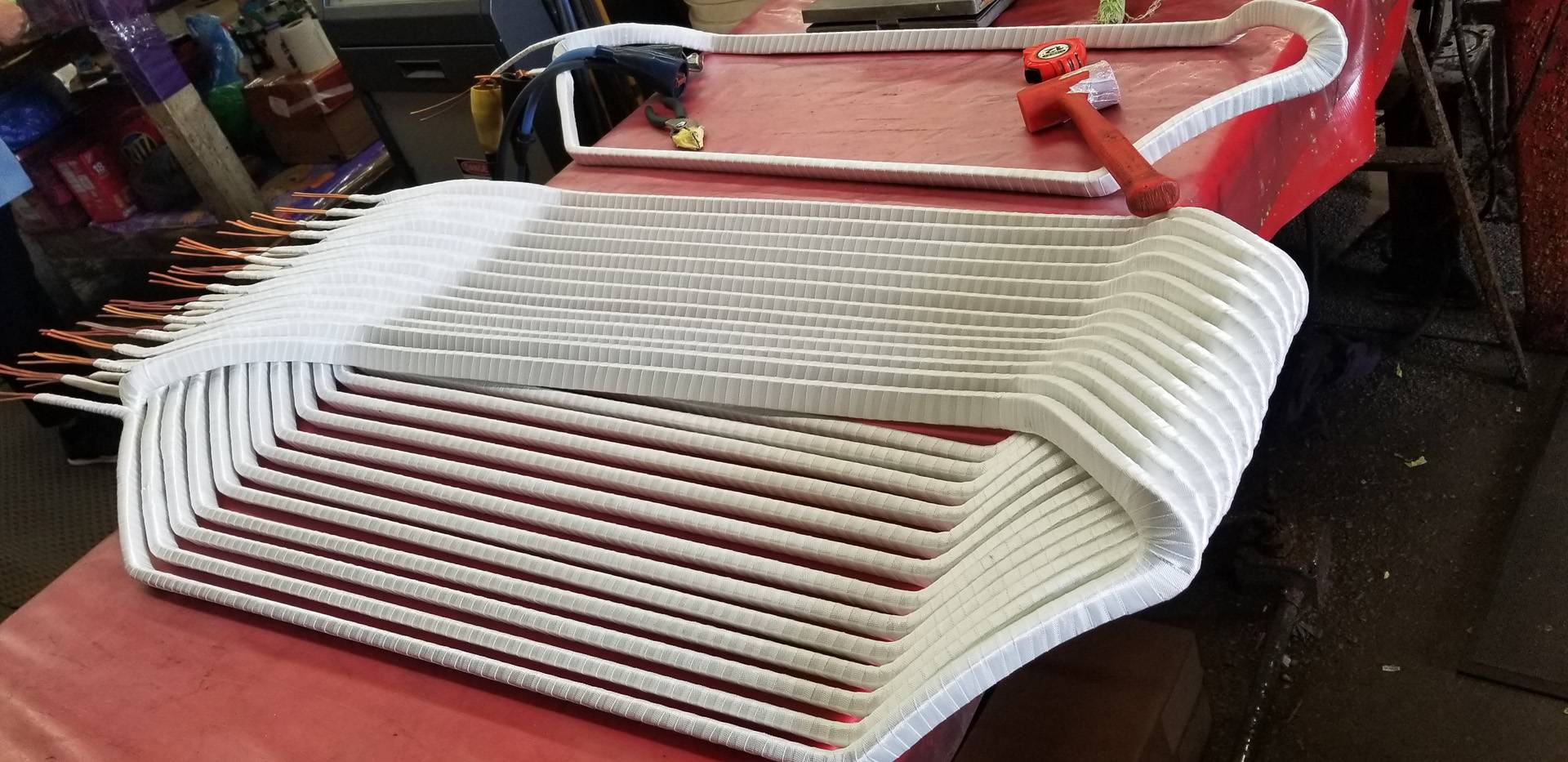

AC Stator Coils
Up to 6900 Volts, up to 85 inches long, simple to complicated, standard to uniquely customized

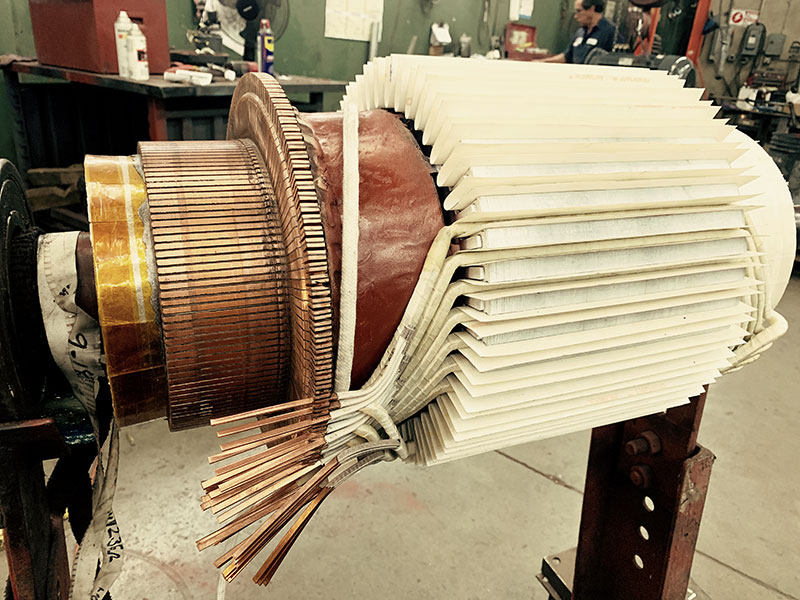

DC Armature Coils
Our second-highest product by volume
DC Rotor Coils
Complicated wound and push-through coils are routine for us

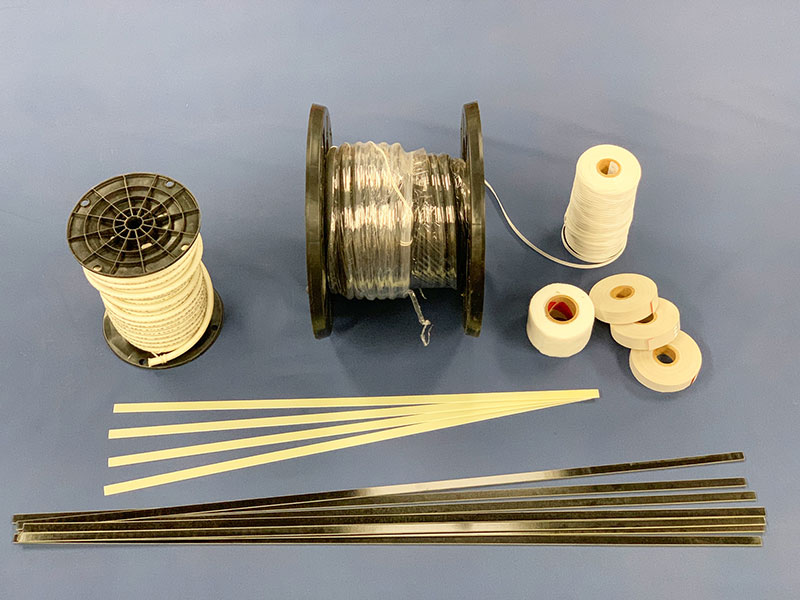

Hand Wound Coil Kits
Everything you need to rewind your motor in-house
Special Insulation Systems
Our hundreds of years of collective experience come together with our supply chain partnerships, enabling us to rapidly fabricate your form coils in any of the configurations listed here.

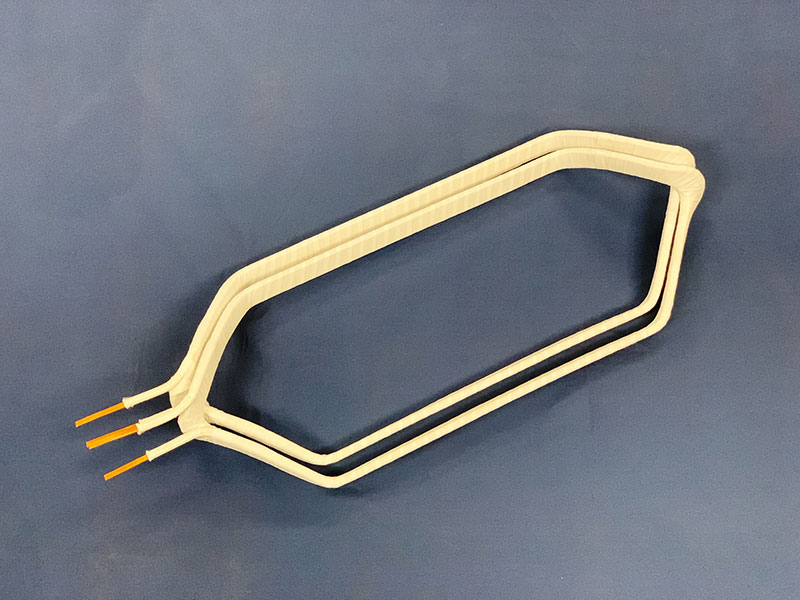

Class F, VPI-Ready System
Most requested form coil, 100% VPI mica coverage under Dacron armor tape

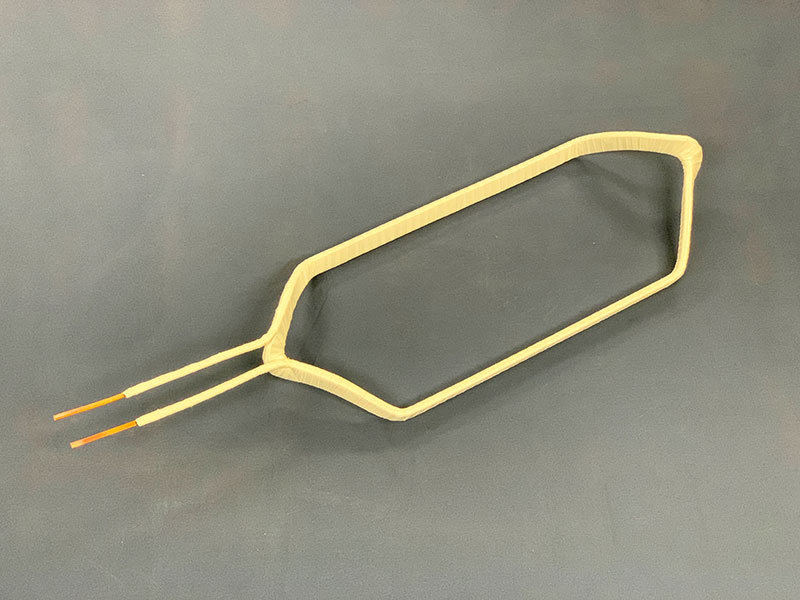

Class H, VPI-Ready System
100% VPI mica coverage under Hesgon Type A fiberglass tape
.

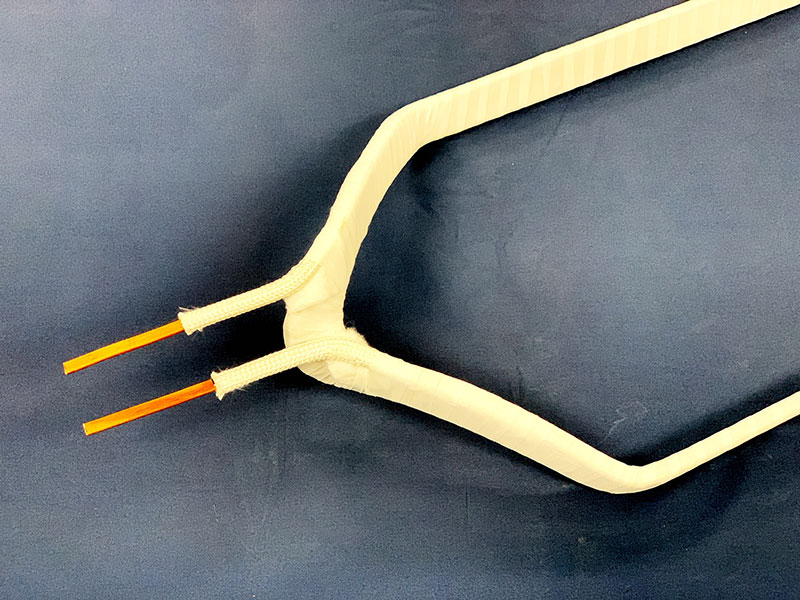

Sealed, VPI-Ready System
100% VPI Mica coverage under Dacron armor tape, with felt pads under the outside leads

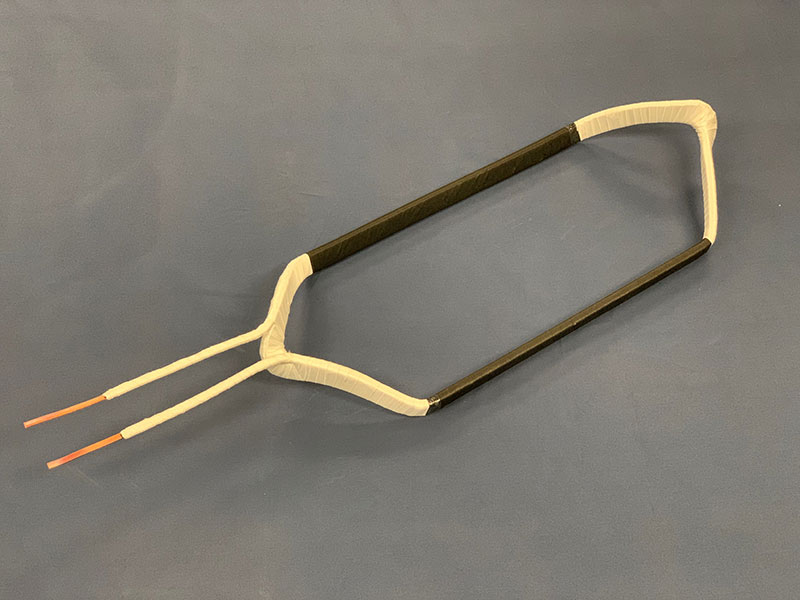

6600 Volt, VPI-Ready System
Six or more layers of 100% VPI Mica tape coverage under Dacron armor tape, with an additional layer of Corona tape through the slot section
Dip & Bake

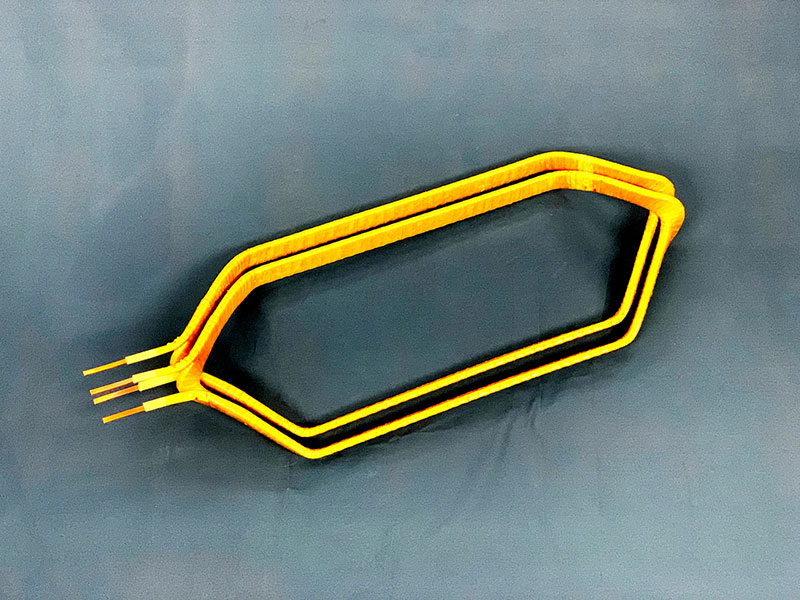

Class F Dip & Bake
High dielectric strength mica tape under a single layer of Hesgon Type A fiberglass tape, dipped in soluble impregnating resin and baked @ 300 degrees F

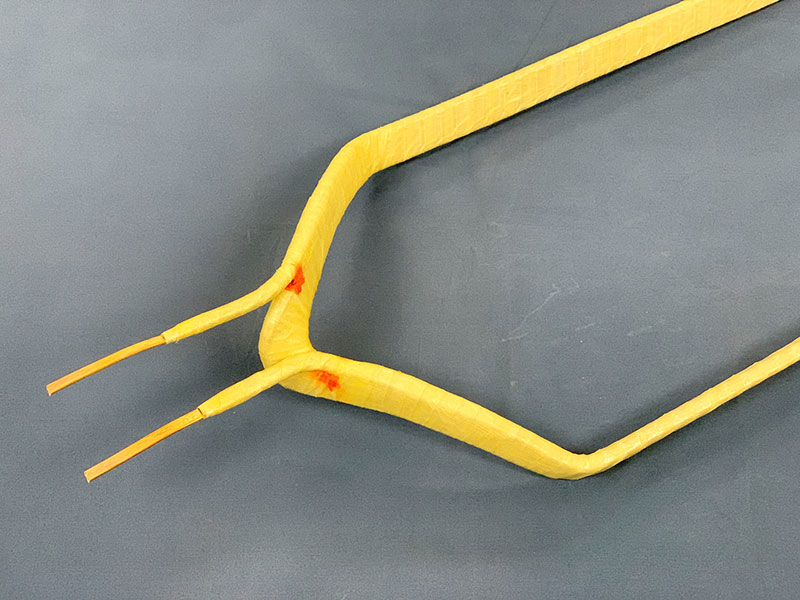

Sealed Dip & Bake
High dielectric strength mica tape under a single layer of Hesgon Type A fiberglass tape, with high temp silicone applied under the exit leads, dipped in soluble impregnating resin and baked @ 300 degrees F
.
6600 Volt Dip & Bake
High dielectric strength mica tape under a single or double layer of Res-I-Flex tape, baked at 250 degrees F, finished with a coat of semi-conductive paint on the slot section
B-Stage (Resin-Rich) System
B-Stage (Resin-Rich) System
100% Mica coverage under a single layer of Res-I-Flex tape, with high temp silicone applied under the exit leads, baked under the watchful eyes of our craftsmen
Industries We Serve
Our craftsmen understand the internal operations of a wide range of industries. At Coiltec, we customize our service model to the urgency of your operation. We carry over $500K worth of inventory to help repair or replace customer equipment in the event of an emergency.
Pipeline
Petrochemical
Steel Processing
Water Treatment
Renewable Energy
Smelting
Utilites
Military
Work with us
We Have Experience
Here at Coiltec, we pride ourselves on the longevity of our employees and the experience they bring. Many of our employees have over 10 years with our company. We promise our customers time-tested craftsmanship using today’s technology to implement custom solutions.
